• Firewall Logs:firewall.log
• WAF Logs:ids_alerts.log
• VPN Logs:vpn_auth.log

Reconnaissance Attemp Detection

cat firewall.log | grep “BLOCK” | head

Examining the blocked requests indicates that an external IP has been found probing against internal IPs using various ports (22,23,21,445,3389).

Further Filtering to Understand The Responsible IP Performing the Reconnaissance

cat firewall.log | grep “BLOCK” | cut -d’ ‘ -f5 | cut -d: -f1 | sort | uniq -c

26 10.8.0.23
46 203.0.113.10
279 203.0.113.45

The suspicious IP 203.0.113.45 has been identified, and now let’s go ahead and see if the firewall allowed any traffic from this IP to pass through:

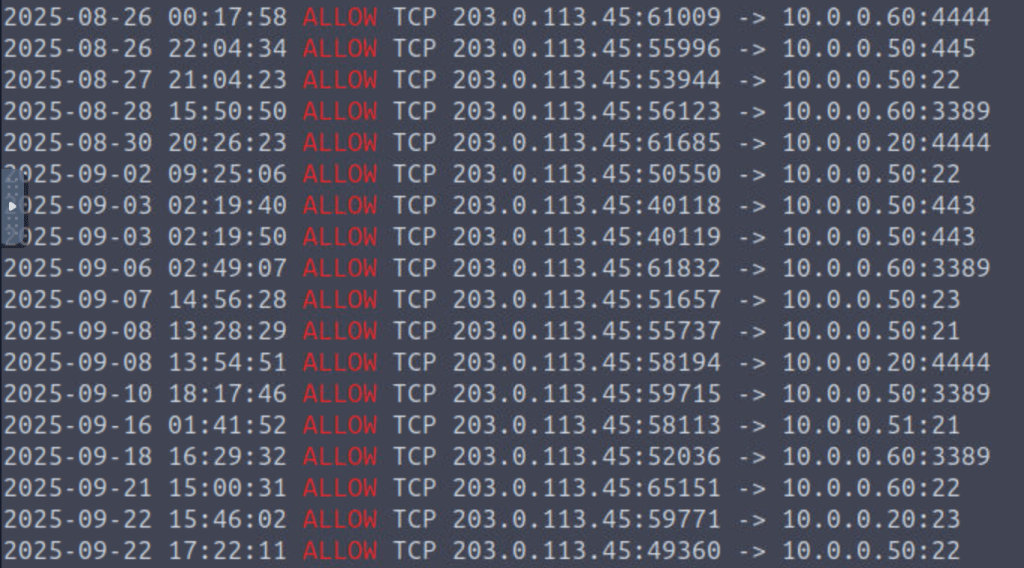

cat firewall.log | grep 203.0.113.45 | grep “ALLOW”

It seems that initial access was gained by the attacker to the internal network.

Now let’s pivot to examining other log files and finding further footprints of the attack

VPN Brute-force / Credential Access

cat vpn_auth.log | grep FAIL | cut -d’ ‘ -f3 | sort -nr | uniq -c

118 203.0.113.45
  1 203.0.113.100
  1 198.51.100.92
  1 198.51.100.45

the suspicious IP has multiple failed VPN login attempts. Let’s now use the following command to narrow down on the suspicious IP, as shown below:

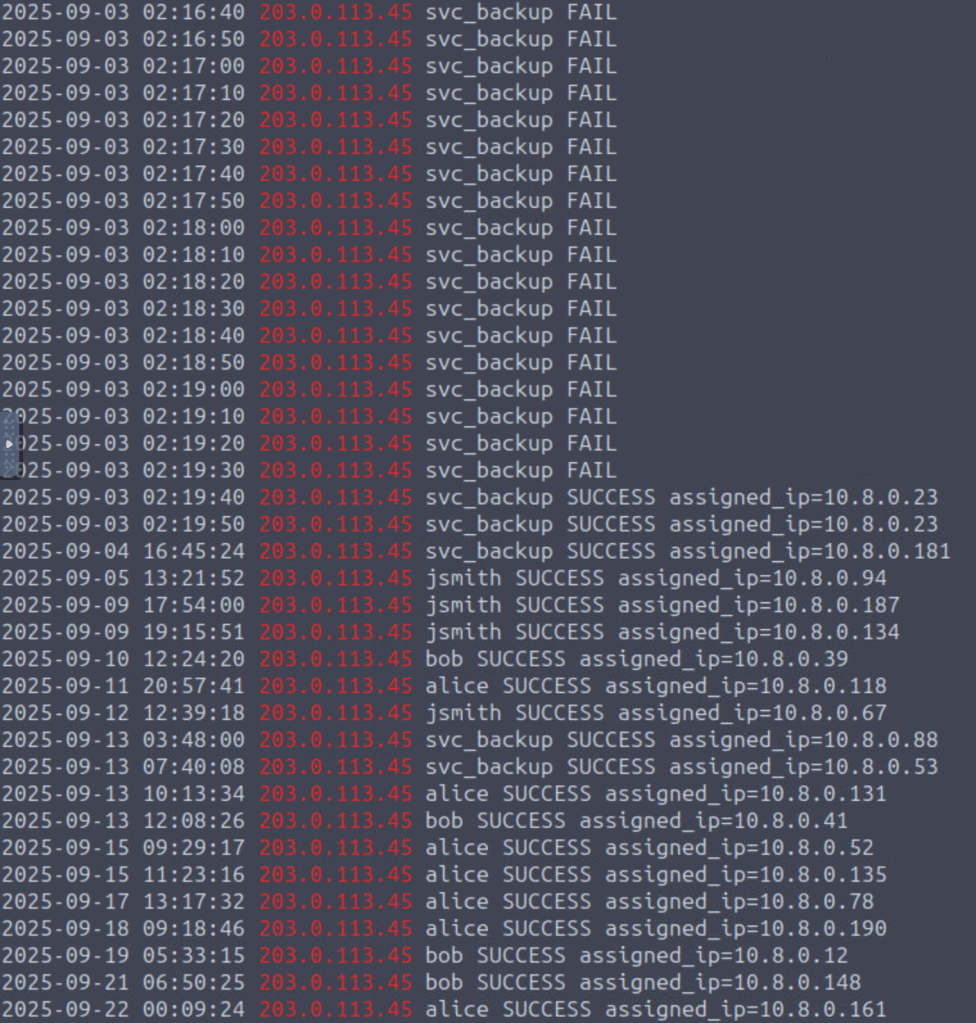

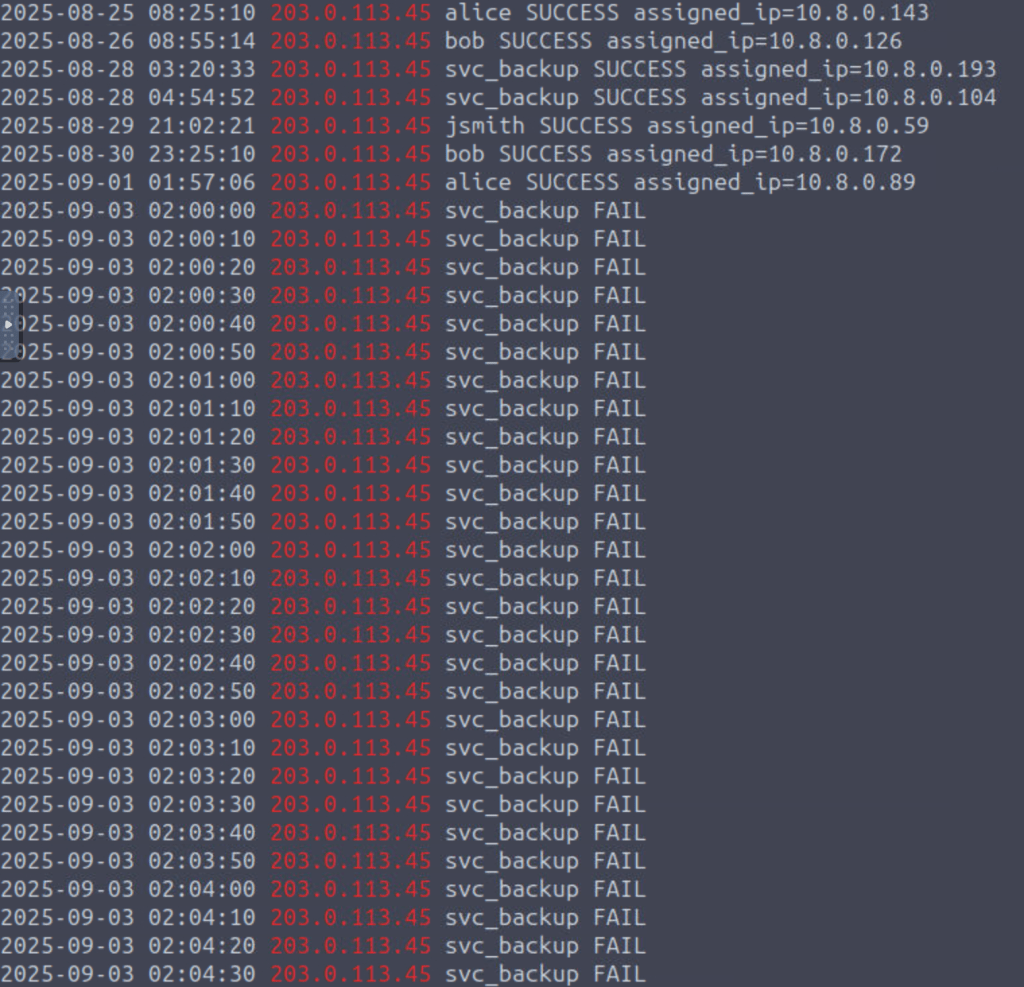

cat vpn_auth.log | grep 203.0.113.45

The above output showed that the attacker made multiple login attemp against user “svc_backup”, ending with a successful login, resulting in the attacker being assigned a local IP 10.8.0.23.

Lateral Movement

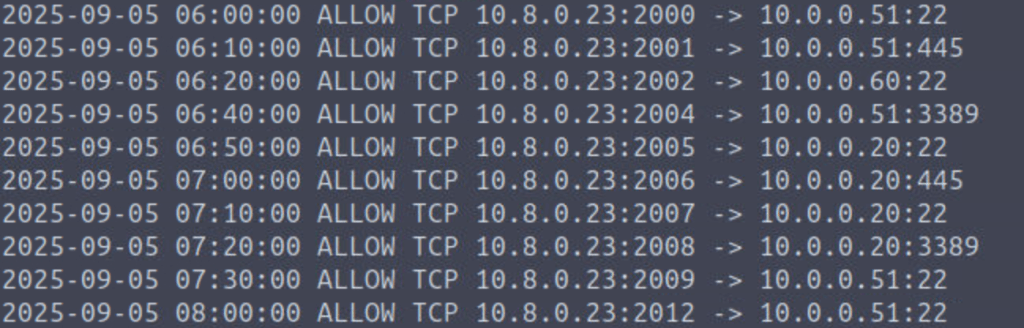

cat firewall.log | grep 10.8.0.23 | grep “ALLOW” | head

The compromised IP made multiple probing attempts on internal hosts 10.0.0.20, 10.0.0.51, 10.0.0.60 on various ports SMB/RDP/SSH (445/3389/22)

To connect the dots, let’s pivot into the ids_alerts logs, and filter through the compromised IP and see if we can find any intrusion rules triggered, as shown below:

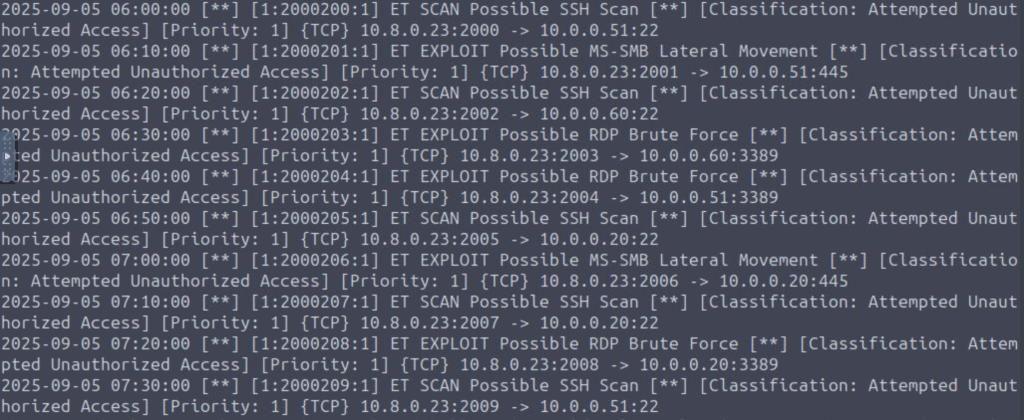

cat ids_alerts.log | grep 10.8.0.23 | head

The compormised host seemed to have tried to exploit multiple vulnerabilities, among which SMB exploitation will be further looked into.

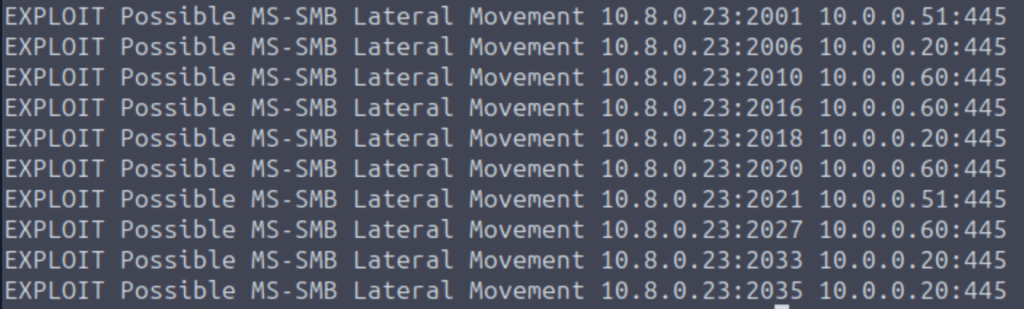

cat ids_alerts.log | grep -n 10.8.0.23 | grep ‘SMB’ | cut -d’ ‘ -f6,7,8,9,10,19,21 | head

The compromised host was able to exploit the SMB service and achieve lateral movement.

C2 Beaconing

Now that, we have an evidence of the lateral movement of the attacker. Let’s hunt for any indicator of C2 communication. If we look at the IDS alerts, we can find a specific alert related to C2 Beaconing, indicating possible C2 communication.

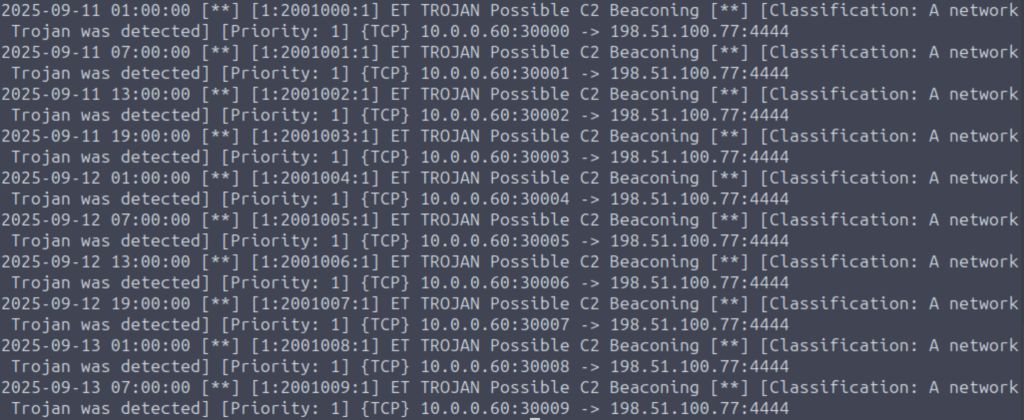

cat ids_alerts.log | grep C2 | head

Host identified: 10.0.0.60

To slice and dice through the results and filter against the compromised IP responsible for C2 beaconing:

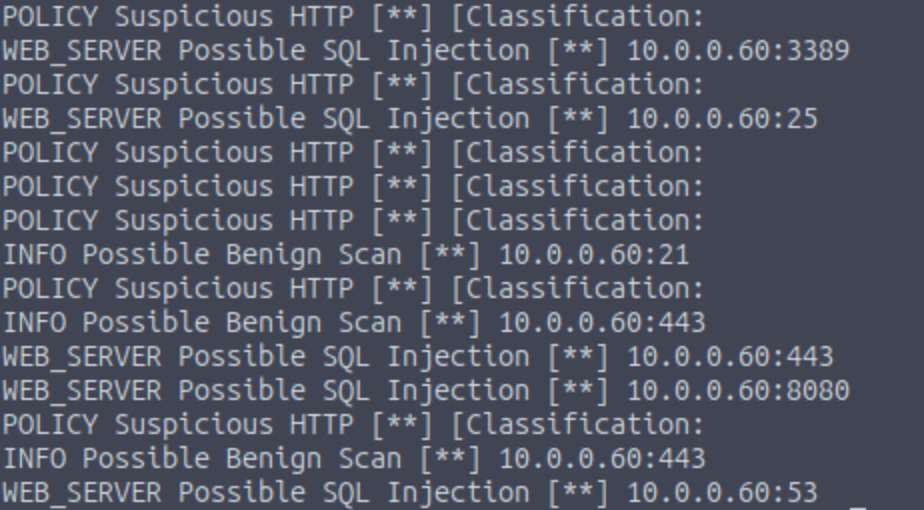

cat ids_alerts.log | grep -n 10.0.0.60 | cut -d’ ‘ -f6,7,8,9,10,19,22,23 | head -n 15

This further affirms that, the infected host is further performing susicious activities.

To see the stats of the alerts triggered agains the infected host:

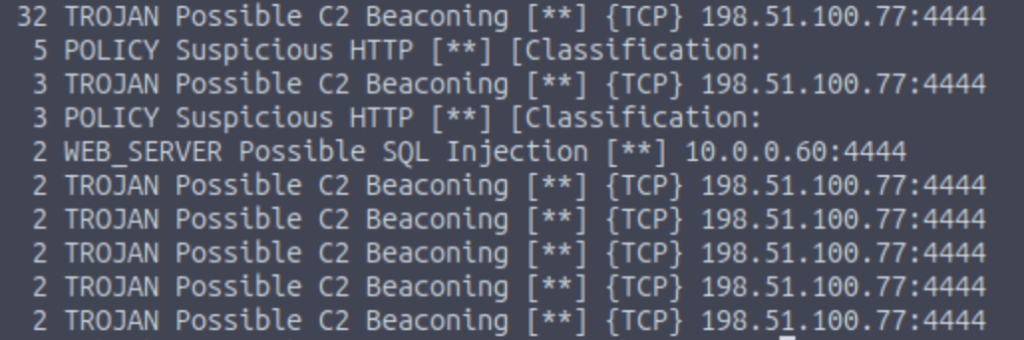

cat ids_alerts.log | grep -n 10.0.0.60 | cut -d’ ‘ -f6,7,8,9,10,19,22,23 | uniq -c | sort -nr | head

Above analysis clearly indicates that the internal network is fully compromised, and the external IP 198.51.100.77 is acting as a C2 server, recieving the C2 beacons from compromised host.

Data Exfiltration Attempt
